Specs
Model Version M1800 2.0
CPU
Chipset MT7621
CPU Details 880 MHz Dual-Core, MIPS1004Kc
Memory/Storage
Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 256 MB (2 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed
1201 Mbps 2.4 GHz Wi-Fi Speed
574 Mbps
5 GHz Wi-Fi Streams
2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams
2T2R (2×2 MIMO)
Wi-Fi Antennas
4× Internal
5 GHz Antenna Gain Max
6.04dBi
2.4 GHz Antenna Gain Max
4.9dBi
FEM or PA/LNA
• 5 GHz: 2× Internal
• 2.4 GHz: 2× Internal
Beamforming
True
Range Performance
Max: 170 m (558 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance
One wooden walls with thickness < 10 cm (4”)
One concrete wall with thickness < 20 cm (7”)
Multi-Pack Indoor Coverage
2 Pack: 360 m² (3900 sq ft)
3 Pack: 500 m² (5500 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room.
Interfaces
Gigabit RJ45 Ports
2
Ethernet Notes
Port 1 as default WAN port, both as LAN ports on Mesh satellite units
LED
• System
• Speed/Link/ACT of Ethernet Port
Physical Buttons
• WPS Button
• Reset Button
Power Input
DC Jack
Power
Power Methods
DC
DC
12V 1A
Power Adapter
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Reliability
Environment
• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing
Certifications
FCC, CE

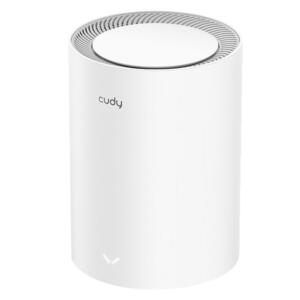

Mechanical
Installation
Desktop
Dimension
Φ110×154.5 mm
Φ4.33×6.08 inches
Product Weight
358 g (12.63 oz.)
Package Content
• M1800
• Power Adapter
• Ethernet Cable
• Installation Guide
Ordering Information
Retail Package Weight
• 1-Pack | EU / US: 685 g (24.16 oz.)
• 2-Pack | EU / US: 1312 g (46.28 oz.)
• 3-Pack | EU / US: 1877 g (66.21 oz.)
Retail Package Dimension
• 1-Pack:
145×130×265 mm
5.71×5.12×10.43 inches
• 2-Pack:
330×130×265 mm
12.99×5.12×10.43 inches
• 3-Pack:
380×130×265 mm
14.96×5.12×10.43 inches
Units per Carton
• 1-Pack: 16
• 2-Pack: 8
• 3-Pack: 4
Carton Dimension
• 1-Pack: 57×56×26 cm
22.44×22.05×10.24 inches
• 2-Pack: 55×54.5×35.3 cm
21.65×21.46×13.9 inches
• 3-Pack: 53.6×40×28.7 cm
21.1×15.75×11.3 inches
Carton Gross Weight
• 1-Pack | EU / US: 12.6 kg (27.78 lbs)
• 2-Pack | EU / US: 12.0 kg (26.46 lbs)
• 3-Pack | EU / US: 8.5 kg (18.74 lbs)
Carton Net Weight
• 1-Pack | EU / US: 11.0 kg (24.25 lbs)
• 2-Pack | EU / US: 10.5 kg (23.15 lbs)
• 3-Pack | EU / US: 7.5 kg (16.53 lbs)
